High tshav kub tsis kam Pure PTFE nrog Kevlar Fiber Corner Braided Packing

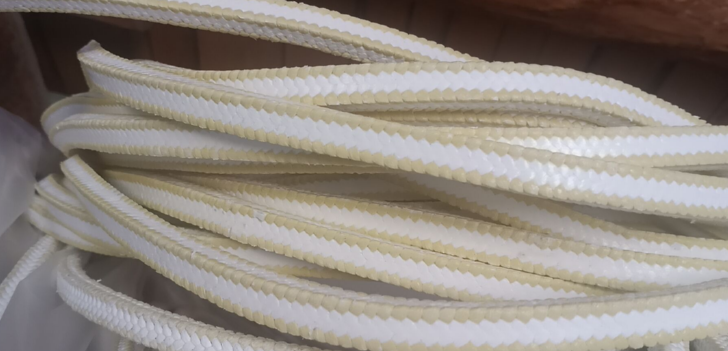

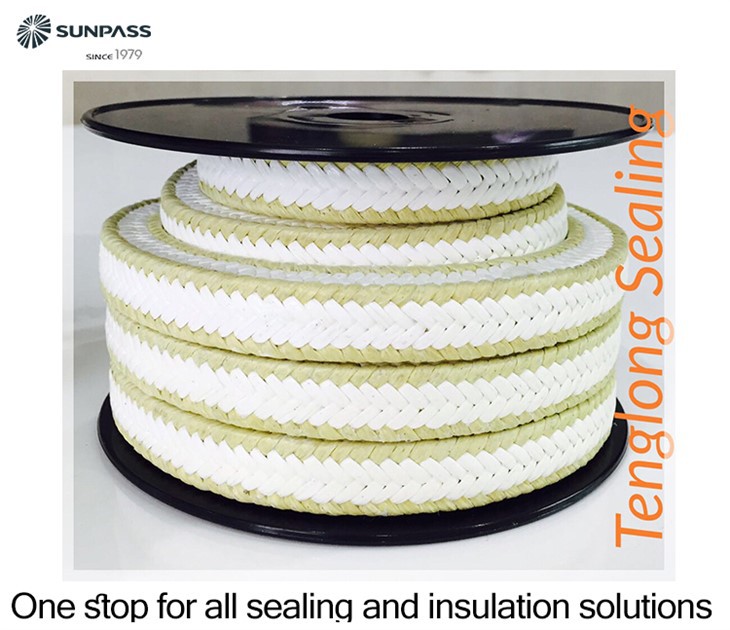

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided Packing

PTFE Aramid yog ib qho super ua ke Hla Braided Packing tshwj xeeb uas tsim los nrog lubricated ntshiab PTFE ntawm lub ntsej muag thiab tshwj xeeb daj hluavtaws fiber ntau filaments ntawm cov ces kaum. Vim nws cov fiber ntau ntom ntom thiab homogeneous kev tsim kho lub ntim yog haum rau tag nrho cov kua nrog rau corrosive tshuaj, txawm nyob rau hauv tsis tshua muaj siab kub. Cov pob khoom muaj qhov tshwj xeeb zoo ntawm qhov ruaj khov, nkag siab thiab tsis muaj tshuaj lom. Kev ntim khoom yuav tsis muab kev ntxhov siab ntxiv rau cov plungers uas ua rau ob qho tib si ntim thiab plunger nyob rau hauv cov xwm txheej siab.

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided Packing Daim ntawv thov:

1.Qhov no yog kev ntim khoom thoob ntiaj teb uas tuaj yeem siv rau cov twj tso kua mis hauv txhua hom kev lag luam.

2.Chemical, petrochemical, kws, zaub mov thiab qab zib industries, pulp thiab ntawv mills, thiab lwm yam.

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided PackingQhov zoo:

1.PTFE Aramid Fiber Packing yog ib qho braided packing ua los ntawm PTFE yarns fiber ntau thiab cov ces kaum yarns
Aramid fiber ntau.

2.Cov qauv no txhim kho lubricability ntawm Aramid fiber ntau thiab txhawb lub zog ntawm cov ntshiab PTFE packing.

3.Qhov kev sib xyaw tshwj xeeb no ua lub luag haujlwm tseem ceeb hauv kev sib khi ntawm lub twj tso kua mis siab piston.
4.Spec: 3.0mm - 50mm

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided PackingTsis haum rau:Concentrated acids thiab lye, alkali hlau, fluorine thiab fluorine tebchaw thaum kub.

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided PackingCov ntaub ntawv thov:

Ntshiab PTFE Nrog Kevlar Fiber Corner Braided PackingPob (Pib Spool):

Tsis tu ncua: 3m, 8m, 1kg, 1 phaus, 2.5kg, 2.5 phaus, 5kg, 5 phaus, 10kg, 10 phaus.

Lwm cov pob khoom muaj nyob rau ntawm kev thov

Nws yog universal packing uas yuav siv tau rau cov twj tso kua mis nyob rau hauv tag nrho cov hom kev lag luam xws li tshuaj, petrochemical, kws, zaub mov thiab qab zib industries, pulp thiab ntawv mills, fais fab mov thiab lwm yam. Nws kuj yog ib tug ruaj packing muaj peev xwm tiv taus granular thiab abrasive. daim ntaub ntawv, nws raug pom zoo rau kev pab nyob rau hauv superheated chav, cov kuab tshuaj, liquefied gases, qab zib syrups thiab lwm yam abrasive kua.

Aramid Kevlar Corner Packing muaj qib siab ntawm resiliency thiab sib xws ntawm ntim thiab yog li zam kev hloov kho caj pas tsis tu ncua. Aramid (Kevlar) Tsawg thermal expansion cov yam ntxwv raws li kev ua haujlwm tiag tiag txo cov neeg kho tshuab siab tiv thaiv lub tes tsho kom txo qis cov nyhuv puas.

1. Koj tus MOQ yog dab tsi?

MOQ yuav txawv ntawm cov neeg siv khoom tshwj xeeb; peb sim peb qhov zoo tshaj plaws kom tau raws li koj qhov kev xav tau ntawm kev lag luam.

2. Koj cov nqe lus them nqi yog dab tsi?

Peb ib txwm ua T / T, thiab peb tuaj yeem muab cov nyiaj pabcuam sab hnub poob rau kev hloov nyiaj. Thiab cov nqe lus them nqi hloov tau yooj yim dua, txais tos kom muaj kev sib tham.

3. Koj puas tuaj yeem muab cov qauv?

Yog lawm, peb tuaj yeem muab cov qauv, thiab qee cov qauv dawb

4. Koj puas tuaj yeem xa los ntawm kev nthuav qhia?

Yog lawm, peb tuaj yeem xa los ntawm txhua qhov kev nthuav qhia.

5. Thaum twg tus qauv yuav npaj tau?

Feem ntau, cov qauv tuaj yeem npaj tau hauv 3 hnub.

Kev npaj ua ntej sealing packing

Tshem tawm cov khoom qub qub Xyuas lub thawv ntim khoom yog tus yuam sij rau kev npaj ua ntej.

1. Ua ntej siv lub ntim, tshem tawm tag nrho cov qub ntim nrog cov cuab yeej tshwj xeeb thiab so lub thawv ntim kom huv.

2. Saib xyuas qhov kev puas tsuaj thiab eccentricity ntawm txhua qhov ntawm lub thawv ntim khoom. Cov qia puas, bushing thiab cov thawv ntim khoom tuaj yeem cuam tshuam rau kev ntim khoom.

3. Xyuas seb lwm cov khoom puas tseem siv tau. Hloov tag nrho cov khoom tawg.

Seal lub packing xaiv lub packing zoo

Muaj ob yam uas yuav tsum tau xav txog thaum xaiv cov ntim khoom.

1. Cov kev xav tau ntawm kev ua haujlwm yuav tsum ua raws li kev ntim khoom. Cov pob khoom uas ua tau raws li qhov yuav tsum tau muaj tuaj yeem xaiv raws li cov ntaub ntawv muaj feem cuam tshuam. Yog tias tsis ntseeg, thov nrog koj tus neeg muag khoom muag.

2. Lub ntim ntim yuav tsum raug xaiv kom raug raws li qhov yuav tsum tau ua sealing. Txhawm rau txiav txim siab hla ntu, siv cov qauv hauv qab no los ntsuas:

Hla ntu=(filler box diameter - qia taub) / 2

Txiav thiab installation ntawm ntim ntim

Xaiv cov ntim khoom tsim nyog thiab txiav lub nplhaib ntim ntawm qhov xav tau ntev nrog lub tshuab txiav. Yog tias tsis muaj lub tshuab txiav txiav, txiav raws li qhov ntim ntev L=(ncej kab d+ ncoo dav s) X1.07X丌. Ntawm qhov dav dav rotating ncej, nws yog txiav nrog 90 degree ncaj thiab lub valve yog txiav nrog 45 degree. Tsis txhob sim txiav txim siab qhov ntev los ntawm kev qhwv lub ntim ncig lub thawv ntim khoom. Los yog qhwv lub ntim ib ncig ntawm ib lub raj ntawm tib OD raws li lub qia, thiab nias kom nruj, tab sis tsis txhob ncab lub ntim. Tom qab ntawd nws raug txiav mus rau hauv cov qauv voj voog thiab kuaj xyuas seb nws sau qhov chaw kom raug thiab tsis muaj qhov sib txawv ntawm nws qhov interface. Cov qauv nplhaib tuaj yeem siv los ua tus qauv txiav lwm lub nplhaib ntim khoom. Yog tias cov khoom tiav tiav tiav rau ntawm qhov chaw tiaj tus, yog tias cov ntim khoom yog mos los yog yooj yim deformed, ib daim kab xev me me tuaj yeem ua raws li cov qauv voj voog, thiab cov khoom ntim ntxiv tuaj yeem ua raws li txoj hlua.

Rotary thiab reciprocating twj pib

Ua ntej kev ua haujlwm, ua ntej kuaj kev ua haujlwm nyob rau hauv qhov tsis muaj kev thauj khoom, saib seb puas muaj qhov txawv txav, thiab tom qab ntawd ua haujlwm tsav tsheb, ua tib zoo saib xyuas, seb puas muaj lub siab los yog tsis tseeb lossis nruj dhau, ua rau muaj qhov hnyav los yog kub hnyiab. Tus yuam sij rau pib lub twj tso kua mis yog kom paub tseeb tias nws xau thaum pib. Yog tias qhov ntim tau pib nruj rau qhov tsis muaj qhov tsis muaj paug, qhov muab tub lim yuav kub hnyiab thiab ua rau cov pa tawm.

Tom qab txhim kho lub nplhaib ntim khoom, ceev cov bolts thiab xyuas kom meej tias lub hau npog tau zoo nrog lub ntsej muag lub ntsej muag. Thaum cov bolts tau nruj, xyuas kom meej tias cov bolts tau nruj nruj.
