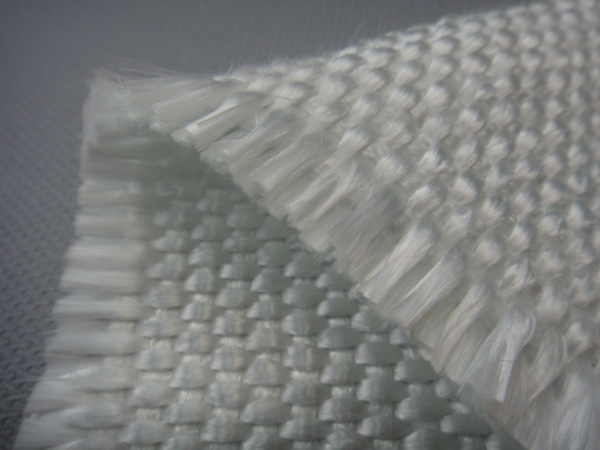

Hluav taws kub rwb thaiv tsev cov ntaub ntawv Texturized Fiberglass Cloth
Texturized Fiberglass Cloth yog tsim los ntawm texturized yarn nrog kub tsis kam, siab zog tom qab puffing txheej txheem .Texturized Fiberglass Cloth yog ib hom tshiab ntawm cov ntaub tsim los ntawm kev nruam iav fiber ntau lim ntaub. Vim tias cov xov paj yog fluffy thiab muaj huab cua zoo permeability, uas tuaj yeem txhim kho cov kev ua haujlwm lim dej, txo qhov pom kev ua haujlwm, kev tshem tawm plua plav ntau dua tuaj yeem ncav cuag ntau dua 99.5%.
Texturized Fiberglass Cloth Nta:
Corrosion kuj
Hluav taws xob rwb thaiv tsev
Siab zog
Cov khoom siv rau txheej, impregnating thiab laminating
Flexible, tuaj yeem qhwv ib ncig ntawm cov duab nyuaj
Texturized Fiberglass Daim ntaub ntawv:
Txhua hom thermal rwb thaiv tsev thiab tiv thaiv tshav kub
Vuam daim pam thiab cov ntaub thaiv hluav taws
Expansion pob qij txha
Cov ntaub ntawv yooj yim rau coatings thiab laminations
Texturized Fiberglass Ntaub Daim Ntawv Thov:
| Khoom | Kev piav qhia | Tus nqi thiab kam rau ua | |
| Lus Askiv | Metric | ||
| Tensile zog | Warp | 200-400ibs/in min. avg. | 35-70n/mm min. avg. |
| Sau | 100-200ibs/in min. avg. | 17. 5-35n/mm min. avg. | |
| Tear Strength | Warp | 50 ib min. avg | 8.75n / hli min. avg. |
| Sau | 25 ib lb min. avg | 4.375n / hli min. avg. | |
| nplaim taws Resistance | Flame Out (SEC) | 1 thib ob | |
| Afterglow (SEC) | 2.5s ob | ||
| Char Length (Inches) | 0.3max.avg | ||
| Lub zog tawg | - | 200 ib/in2 min. avg | 14.0618kg/cm2 min. avg |
| Hydrostatic Resistance | - | 200 ib/in2 min. avg | 14.0618kg/cm2 min. avg |
Specification:
| Description/Style NO. | 3800-08 | 3800-10 | 3800-15 | 3800-20 | 3800-30 | |
| Qhov hnyav | Lus Askiv | 18 oz/y2 | 24 oz/y2 | 30 oz/y2 | 36 oz/y2 | 52 oz/y os2 |
| Metric | 650 g/m2 | 800 g/m2 | 1000 g/m2 | 1250 g/m2 | 1800 g/m2 | |
| Thickness | Lus Askiv | 0.03 nti | 0.04 nti | 0.06 nti | 0.08 nti | 0.1 nti |
| Metric | 0.8 hli | 1 hli | 1.5 hli | 2 hli | 3 hli | |
| Dav | Lus Askiv | 40-70 nti | 40-78 nti | 40-78 nti | 40-78 nti | 40-78 nti |
| Metric | 1-1.8 m | 1-2 m | 1-2 m | 1-2 m | 1-2 m | |
| Kub | Lus Askiv | 550 degree | ||||
| Metric | 1000 ℉ | |||||
| Weave | Plain | |||||
| Txheej & Kho | Aluminium Ntawv Nyiaj, Vermiculite, Graphite, PU, PVC, Silicone thiab Kub Kho | |||||
| Xim | Daj, Dub, Liab, Golden | |||||
1. Koj tus MOQ yog dab tsi?
MOQ yuav txawv ntawm cov neeg siv khoom tshwj xeeb; peb sim peb qhov zoo tshaj plaws kom tau raws li koj qhov kev xav tau ntawm kev lag luam.
2. Koj cov nqe lus them nqi yog dab tsi?
Peb ib txwm ua T / T, thiab peb tuaj yeem muab cov nyiaj pabcuam sab hnub poob rau kev hloov nyiaj. Thiab cov nqe lus them nqi hloov tau yooj yim dua, txais tos kom muaj kev sib tham.
3. Koj puas tuaj yeem muab cov qauv?
Yog lawm, peb tuaj yeem muab cov qauv, thiab qee cov qauv dawb
4. Koj puas tuaj yeem xa los ntawm kev nthuav qhia?
Yog lawm, peb tuaj yeem xa los ntawm txhua qhov kev nthuav qhia.
5. Thaum twg tus qauv yuav npaj tau?
Feem ntau, cov qauv tuaj yeem npaj tau hauv 3 hnub.
